Monte Bianco Clearance Online Online

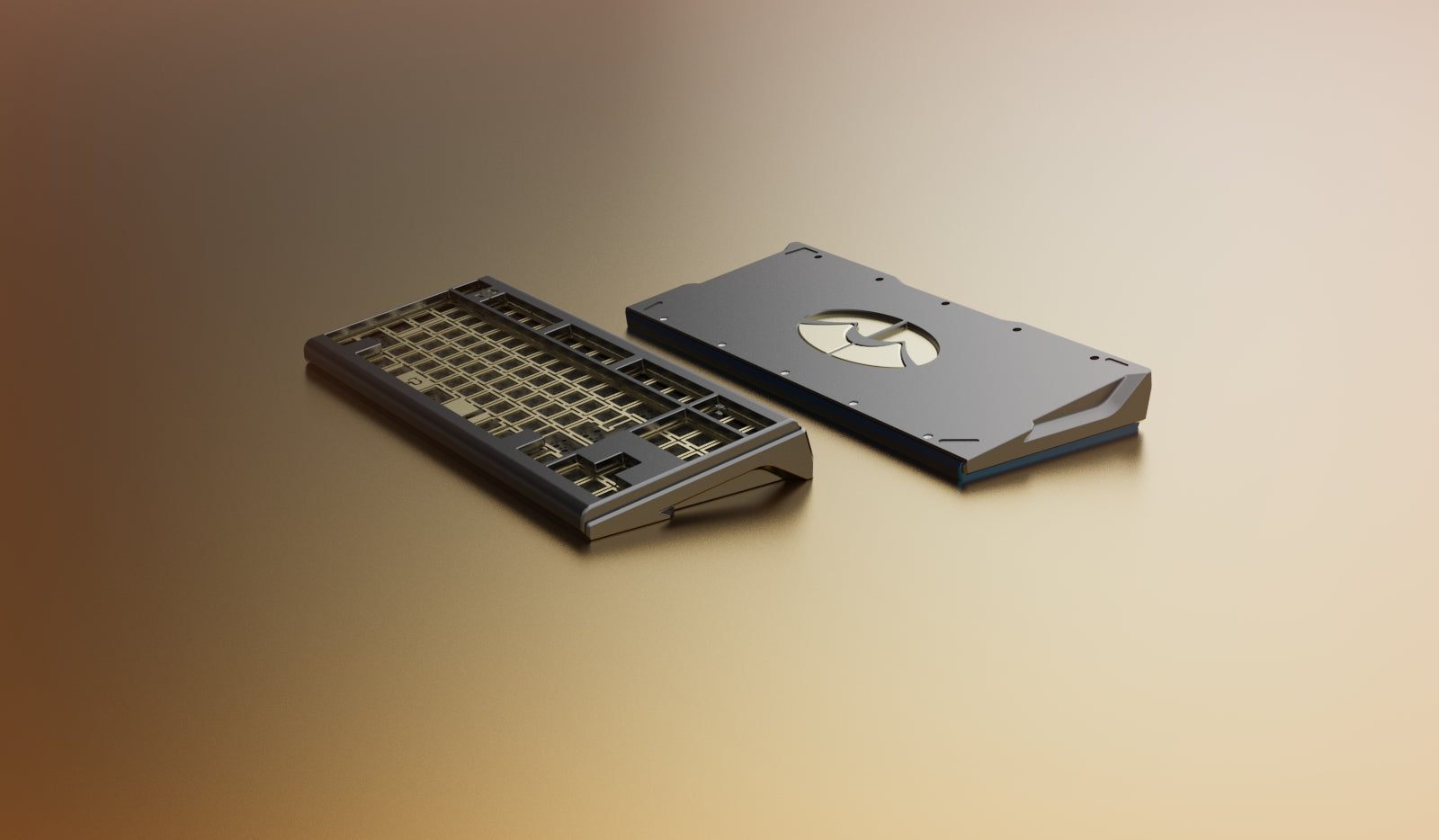

Syryan Industries TKL keyboard ‘Monte Bianco’



Sales Time

 – June 18th 2022 00:00 KST (GMT +9)

 – Will be shipped out within a week.



Kits Include

PCB is not included in the base kit.

– Case (Upper / Bottom)
– Alu Plate (6061 / Anodized)
– Pink or black Gasket Set (Upper / Lower)
– Brass Weight (Sand Blasted / Clear Coated)
– Switch Dampeners (Pink Mid / Black Lower)
– Bump on / Screws
– Carrying Case

Color Offers

– Urban Gray / Silver
– Cyan / Peacock Green
– Graphite Black



Specification

•   Layout: Tenkeyless (Winkey or Winkeyless)
•   Mounting: Upper gasket (1.5T = 1.5mm thick), Lower Gasket (2.5T = 2.5mm thick)
•   Materials: 6061 Aluminum Case, Brass Weight
•   Weight (approx.): Unbuilt, about 2.5kg
•   Typing Angle: 9 degrees
•   Front Height: ~19.8mm
•   Plates: Aluminum, PC, Brass
•   Price: USD 520 (Solder PCB) / USD 535 (Hot Swap PCB)
•   Units: Unlimited

PCB Information

PCB is not included in the base kit.

3 PCB types

Solder type
FAve 87 V2 PCB
Layout – TKL layout (WK, WKL, ISO compatible)
Connector type – USB C
LED – Underglow RGB and single in-switch LED
Keymap Programming – QMK / VIA compatible

Hot Swap Type (WKL)

FAve 87 V2 PCB
Layout – WKL Only
Connector type – USB C
LED – Underglow RGB and RGB in-switch LED
Keymap Programming – QMK / VIA compatible

Hot Swap Type (WK)

FAve 87 V2 PCB
Layout – WK Only
Connector type – USB C
LED – Underglow RGB and RGB in-switch LED
Keymap Programming – QMK / VIA compatible

QC Standard

Please read below QC standard carefully.

By making order for this product, we will consider as you have agreed on our QC standard.

– Any internal flaw, that is not being seen in normal built will not be considered for reason of refund or replacement.

– You can claim for refund or replacement for any unit that is not being able to assemble properly, by design or processing issue for plates, top and bottom cases, internal weight.

– For external parts, there might be minor color variation between top and bottom cases. We will not accept refund or replacement claims for this color variation.

– For scratches and dings

You can claim for refund or replacement for any scratches in outter parts, that can be seen in normal build,
that is larger than 3mm of scratch and/or 1mm of ding.

You can claim for any anodizing strains larger than 1cm.

– For brass and Stainless steel plates

We have ordered the best quality of those raw materials but even with that, there might be strains and scratches that can be seen after process. We consider this minor strains and scratches as not QC flaws.

We will try our best to minimize those marks and scratches but for those who are very sensitive with minor scratch and strain on or under the plate, please consider not to order SS plates and brass plates.

We will not accept any claims for the minor scratch and strain of the raw material for the brass and SS plates.

We will try our best to deliver the best QC with this project.

Thank you.
